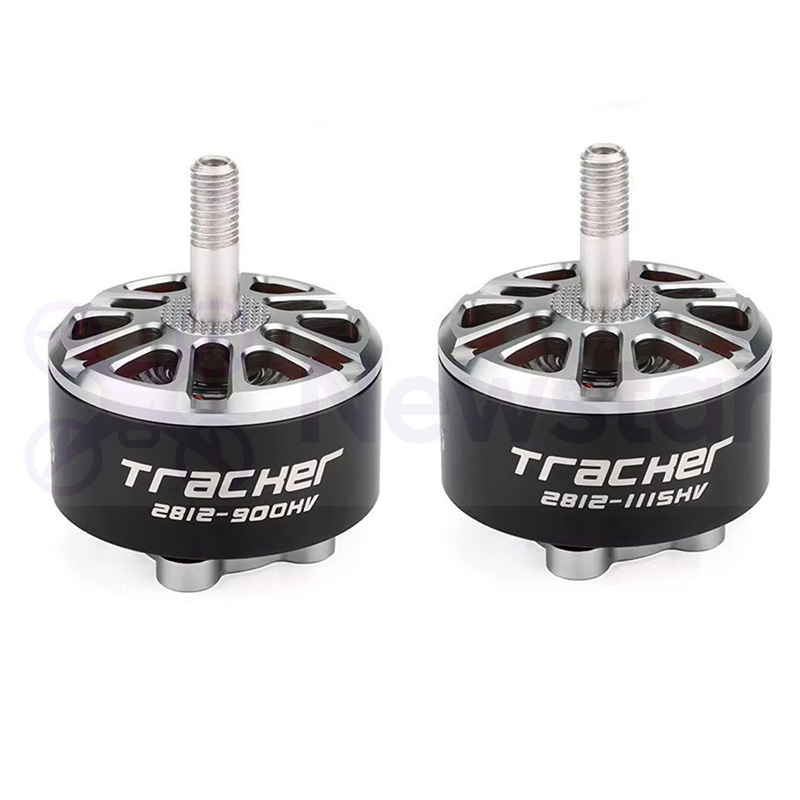

Tracker 2812 900KV 1115KV 4S-6S Brushless Motor for Mark4 APEX FPV Freestyle 7inch 8inch Long Range LR7 Drones

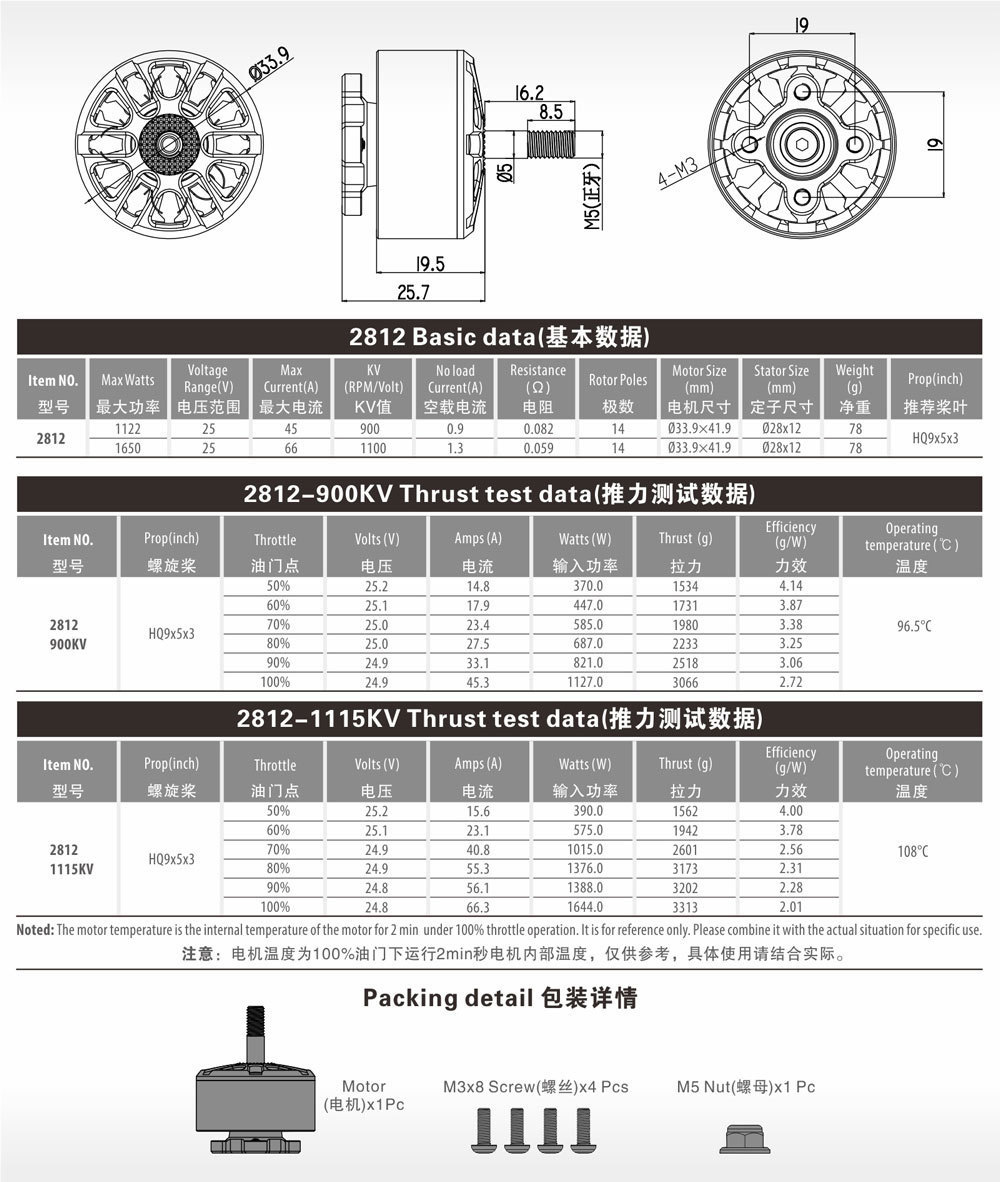

Specifications
Series: Tracker
Test item: 2812-900kv
No.of cells: 2S-6S
Weight: 73g(W/0 Silicone Wire)
Bearing Shaft: 4mm
Max.Power (6S): 1480W
Lead: 18#AWG250mm
Motor Dimensions: 33.5mm*22.5mm
Idle Current (10V): 1A
Propeller: CF9*4.7
Framework: 12N 14P
Peak Current (6S): 40A
Internal Resistance:68mΩ

Test item:2812-1115KV
No.of cells:2S-6S
Weight:73g(W/0 Silicone Wire)
Bearing Shaft:4mm
Max.Power (6S): 950W
Lead: 18#AWG250mm
Motor Dimensions: 33.5mm*22.5mm
Idle Current (10V): 1.2A
Propeller: CF9*4.7
Framework: 12N 14P
Peak Current (6S): 60A
Internal Resistance: 78mΩ

Applicable model: 6-inch 7-inch 8-inch 9-inch 10 inch drone
ESC：40A-45A-50A-60A-65A ESC
Propeller: 5-inch 6-inch 7-inch 8-inch propeller
Flight control: F3/F4/F7/KK/SpeedyBee F405 F722, etc.
