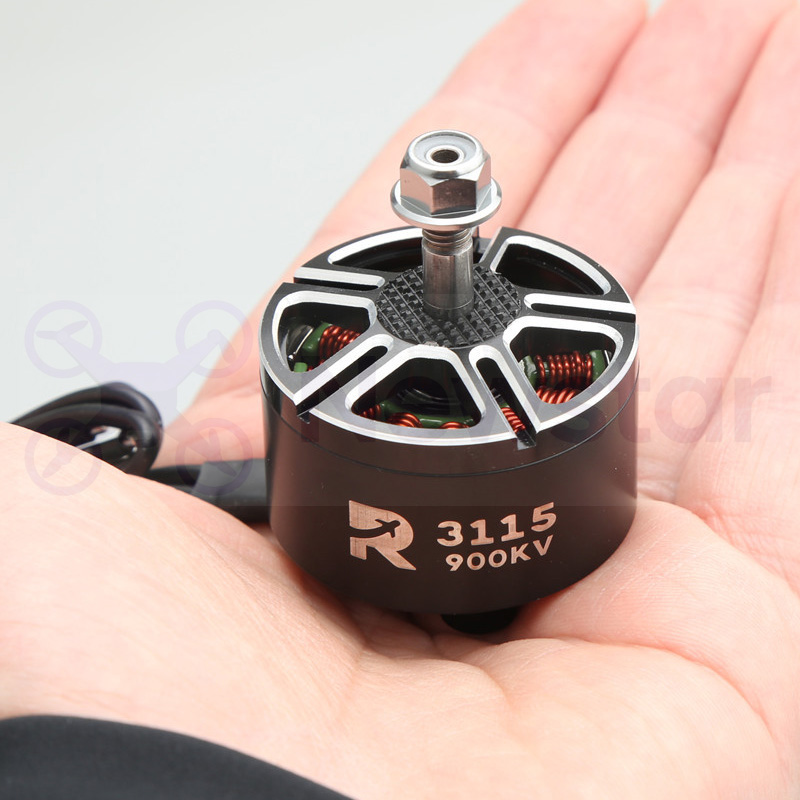

900KV R3115 Description:
KV: KV900
Operating rated voltage (Lipo): 3-6S
Specifications：R3115-900KV
Stator Diameter：31
Stator Thickness：15
No. of Stator Arms：12
No. of Stator Poles ：14
Motor KV ：900
No-Load Current(25.2V) (25.2V) 2.5A Max
Motor Resistance：60mΩ(Ref)
Weight：112g+/-2g
Outside Diameter：37.5+/-0.2 mm
Body Length：33.6+/-0.5 mm

640KV R3115 Description:
KV: KV640
Operating rated voltage (Lipo): 3-6S
Specifications：R3115-900KV
Stator Diameter：31
Stator Thickness：15
No. of Stator Arms：12
No. of Stator Poles ：14
Motor KV ：640
No-Load Current(25.2V) (25.2V) 2.5A Max
Motor Resistance：60mΩ(Ref)
Weight：112g+/-2g
Outside Diameter：37.5+/-0.2 mm
Body Length：33.6+/-0.5 mm

Applicable models: 10 inch and 11 inch unmanned aerial vehicle (UAV) traversal aircraft
