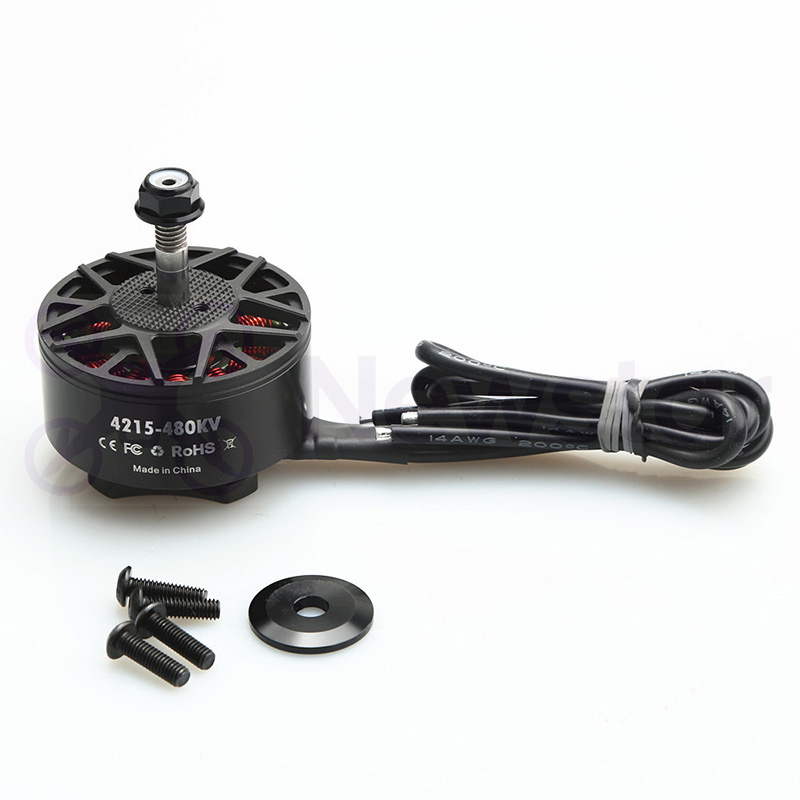

Brushless motor 480KV 4215
Model: 4215
KV value: 480KV
Polar logarithm: 7
Stator core: Kawasaki 1200
Enamel wire grade: 220 ℃
Number of stator slots: 12 slots
Shell material: 6061T6

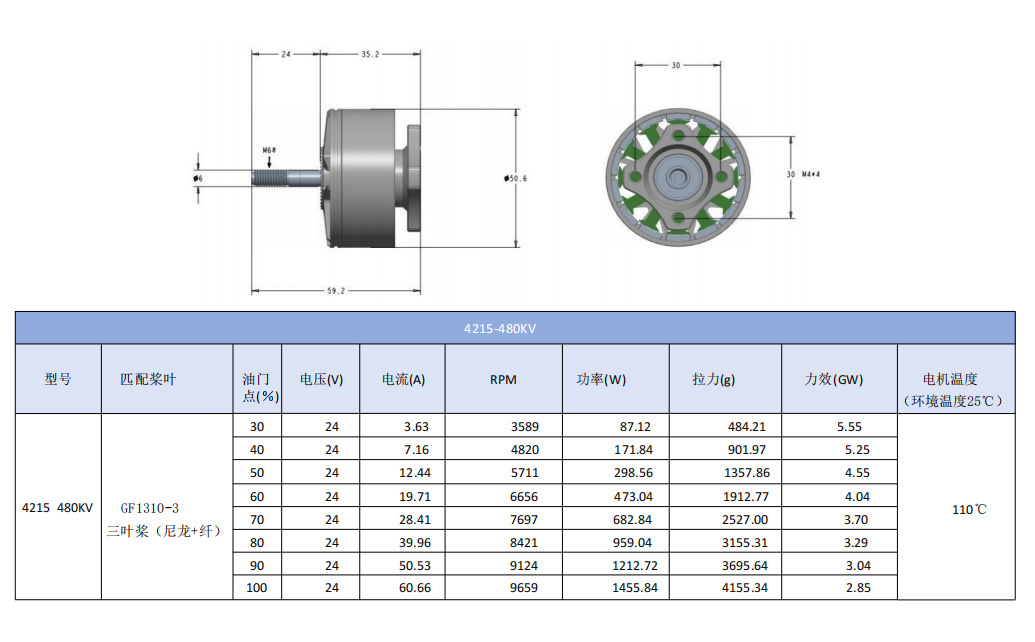

Motor size: 59.2 * 50.6mm
Propeller installation hole position: M6
Shaft diameter: 6mm
Motor installation hole position: M4 * 4 * 30
Outgoing length: 500mm (black No.14 silicone wire)
Coil withstand voltage test: 500V
Working voltage: 6s-8S
No load current: 1.5A/25V
Inter phase internal resistance: 68 milliohms
Maximum tensile force: 5kg
Weight: 231.9g
Weight with packaging: 261g
Packaging size: 70 * 70 * 70mm
