Brushless motor 360KV 4218 FPV drones accessory 15inch 13inch

Short Description:

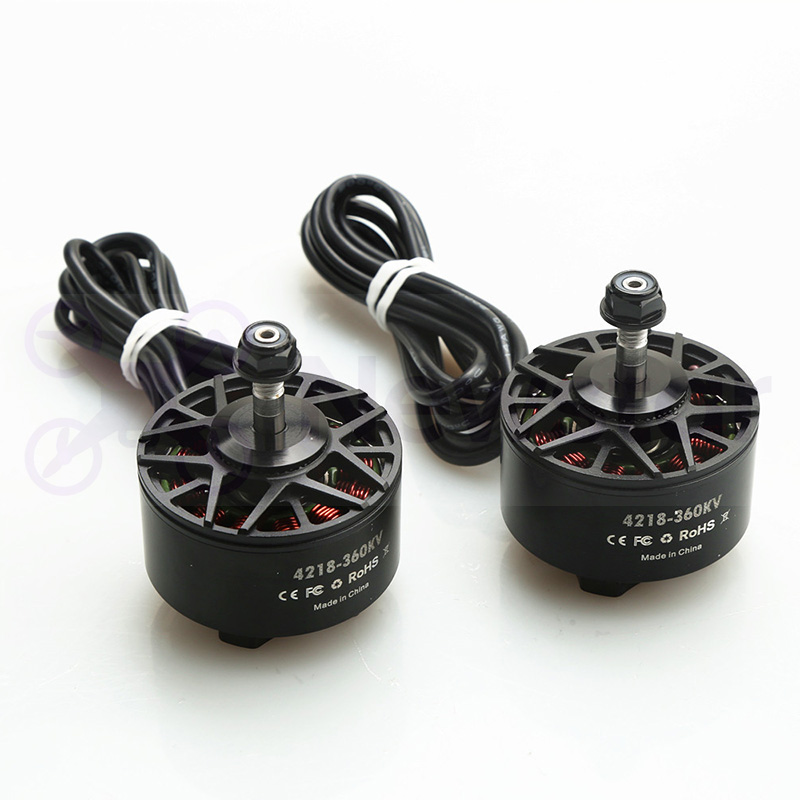

360KV 4218 Brushless motor

Product Detail

Product Tags

Feature
New EM series motors designed for long-range FPV
High-strength M6 steel shaft
High torque magnetic circuit design
Specifications
Model: X4218 350KV Motor
KV: 350KV
Max Watt: 1800W
Peak Current: 60A
Interphase Resistance: 50mΩ
Propeller: 13-15inch Propeller
Magnet: N52H
Bearing Type: NMB
Configuration: 12N14P
Dimension: φ49mmx40.1mm
Shaft Diameter: φ6mm
Shaft Protruding Length: 22.9mm
Mounting Holes: 30mmx30mm
Lead: 800mm/14AWG
Compatible ESC: 60A-80A
Input Volts: 33.6V(8S LiPo)
Winding: Many-strand copper winding
Included Screws: Semi-spherical Head M4*10 (4PCS)/M6 Flange Nut (1PCS)
Weight: 289g(included wire)
Compatible models: 13-15 inch long-range FPV
