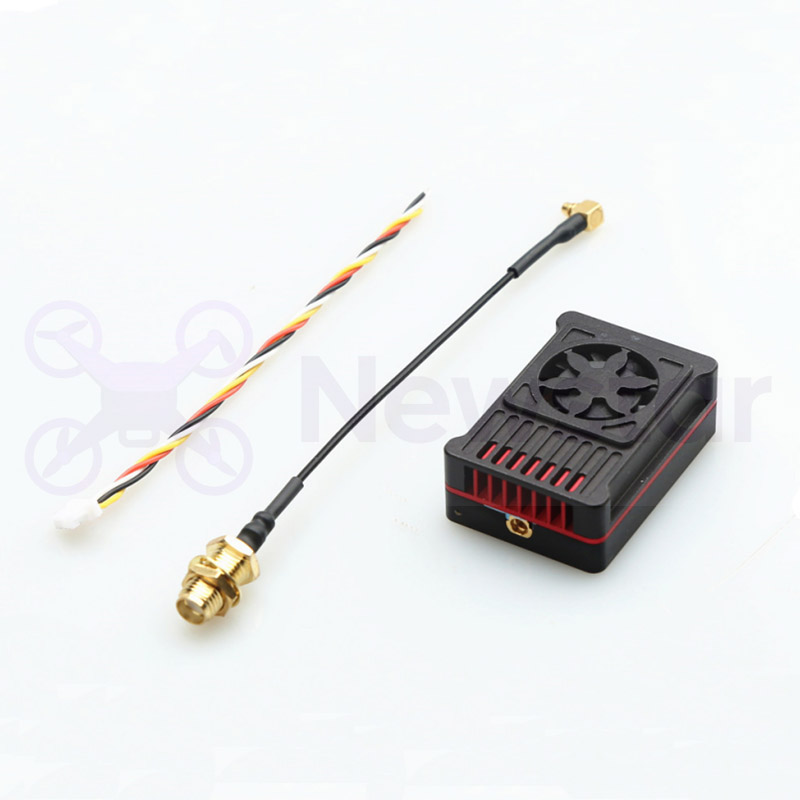

5.8G 2.5W VTX Product specifications
Color: Black/red
Two channels available: 5.8G2.5W
1. Input voltage: DC7-36V (2-8s Batter)
2. Working current: 120-860mA (12V / 25mw-2500mW)
3. Operating temperature: -10 ~ 60℃
4. Video input impedance: 75Ω
5. Size: 39.5×27.5×14.5mm
6. Antenna interface: MMCX
7. Standard: NTSC/PAL
8. Protocol: IRC Tramp
9. Product weight: 20g
10. Installation hole position: 25.5×25.5mm / ΦM2
11. Output power: 25mW / 400mW / 800mW / 1600mW / 2500mW/Pit
12. Built-in microphone
13.Frequency point: 48CH

Features:
Equipped with high and stable output power for long-range transmission.
It features six-switch transmitting power: PIT/25mW/400mW/800mW/1500mW/2500mW,
enabling quick frequency locking without disturbing colleagues.

Features a self-check function for output power.
Supports full-standard video formats: NTSC/PAL.

Enclosed in a robust, all-metal CNC shell, the transmitter offers excellent anti-dust and
explosion-proof properties and good heat dissipation for stable power.

Package Includes:
1*TEARCKEP 5.8G 2.5W 48CH VTX

Please contact us for datasheet.
