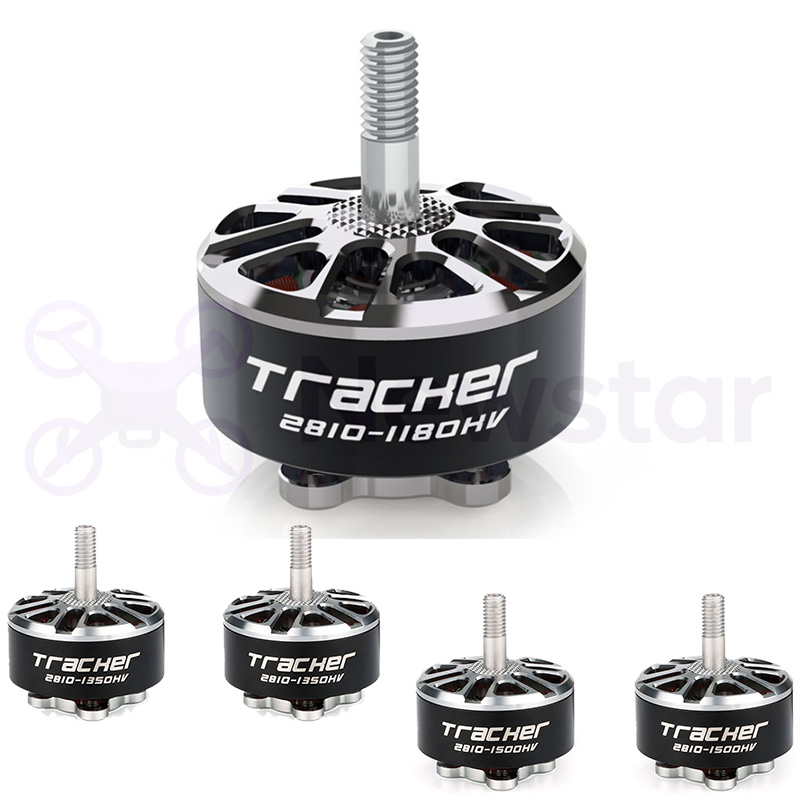

Tracker 2810 1180KV 1350KV 1500KV 4S-6S Brushless Motor for Mark4 APEX FPV Freestyle 7inch 8inch Long Range LR7 Drones

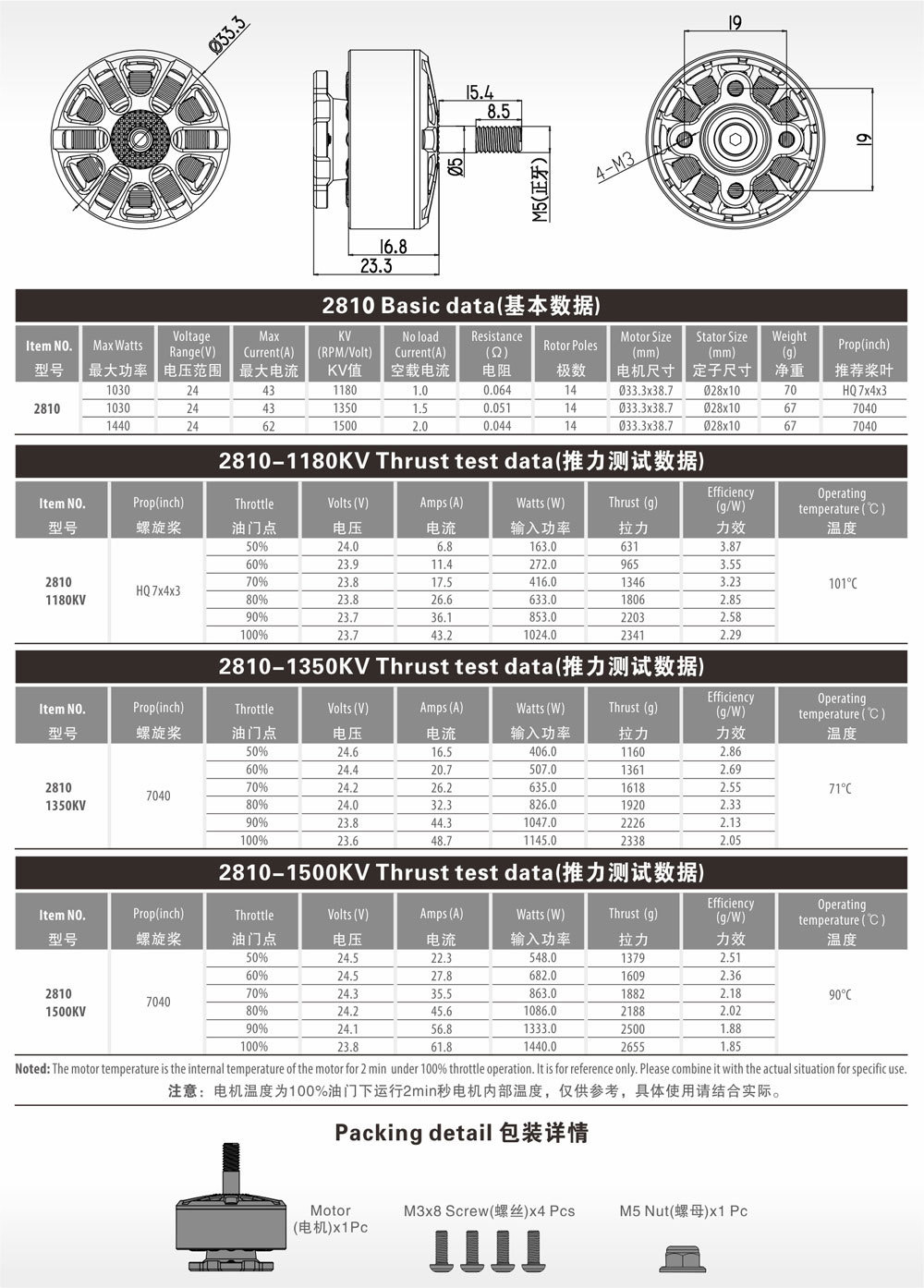

Specifications
Series: Tracker
Color: Titanium
KV: 1180KV/1350KV/1500KV
No.of Cells(Lipo): 5-7S
Configuration: 12N14P
Stator: 0.2mm Kawasaki silicon steel
Prop Adapter Shaft Thread: M5
Shaft: STEEL SHAFT
Bolt Pattern: M3 (19X19mm)
Bearings: Japanese NMB 12X6X4
Rotor: N52H arc magnets
Weight: 65g with 25cm SR wires
Wire AWG: 18AWG 25cm length
Bell cap: Al 7075
Base casing: Al 7075

Applicable model: 6-inch 7-inch 8-inch 9-inch 10 inch drone
ESC：40A-45A-50A-60A ESC
Propeller: 5-inch 6-inch 7-inch 8-inch propeller
Flight control: F3/F4/F7/KK/SpeedyBee F405 F722, etc.
